DESCRIPTION

Basic Info

Model NO.	316 7x7
Delivery Time	10 Days
Delivery Terms	EXW,Fob,CFR,CIF
Production	En12385-4 , GB/T 9944-2015
Lay	Sz Right Hand Regular Lay Rhrl
Transport Package	Plywood Reel, Pallet
Specification	7x7
Trademark	Tianli Stainless Steel
Origin	Jiangsu, China
HS Code	7312100000
Production Capacity	800 Ton/Month

Product Description

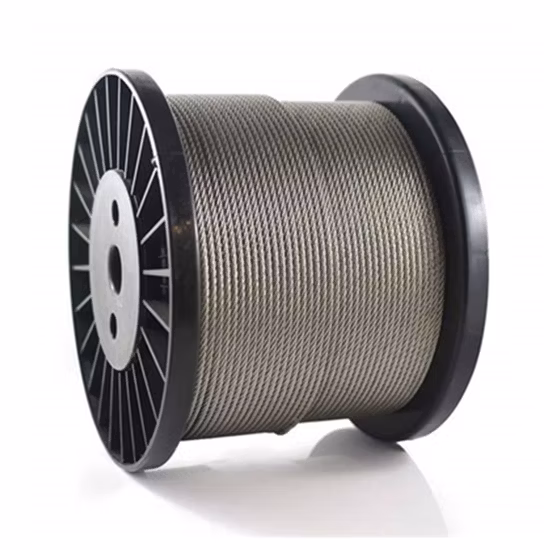

ss 316 stainless steel aircraft control cable 7x7

brief basic key info:
Type: Stainless Steel Wire Rope

Material: 316 A4 1.4401 grades stainless steel

Diameter: 0.8mm - 8mm

Construction: 7x7
Standard: EN 12385-4 , GB/T 9944-2015

for nautical use, corrosive environments, chemical industry and architecture

7x7 Stainless Steel Wire Rope Specification:

Structure	Rope diameter mm	kg/1000m	Minimum Breaking force N	Minimum Breaking force kg
7x7	0.3	0.36	53.9	5.5
	0.36	0.5184	83.3	8.5
	0.45	0.81	142.1	14.5
	0.54	1.1664	205.8	21
	0.6	1.44	215.6	22
	0.72	2.0736	362.6	37
	0.8	2.56	460.6	47
	0.9	3.24	539	55
	1	4	637	65
	1.2	5.76	882	90
	1.6	10.24	2100	214
	1.8	12.96	2254	230
	2	16	2940	300
	2.4	23.04	4100	418
	2.5	25	4400	449
	3	36	6370	650
	3.5	49	7640	780
	4	64	9510	970
	5	100	14700	1500
	6	144	18600	1898

other specification available

Inch mm convert table ( 1 ft=12 inch ; 1 inch = 25.4 mm ) :

inch				mm		inch				mm		inch				mm		inch				mm
1/2		0.5		12.7		3/32		0.09375		2.381		3/64		0.046875		1.191		35/64		0.546875		13.891
1/4		0.25		6.35		5/32		0.15625		3.969		5/64		0.078125		1.984		37/64		0.578125		14.684
3/4		0.75		19.05		7/32		0.21875		5.556		7/64		0.109375		2.778		39/64		0.609375		15.478
1/8		0.125		3.175		9/32		0.28125		7.144		9/64		0.140625		3.572		41/64		0.640625		16.272
3/8		0.375		9.525		11/32		0.34375		8.731		11/64		0.171875		4.366		43/64		0.671875		17.066
5/8		0.625		15.875		13/32		0.40625		10.319		13/64		0.203125		5.159		45/64		0.703125		17.859
7/8		0.875		22.225		15/32		0.46875		11.906		15/64		0.234375		5.953		47/64		0.734375		18.653
1/16		0.0625		1.588		17/32		0.53125		13.494		17/64		0.265625		6.747		49/64		0.765625		19.447
3/16		0.1875		4.763		19/32		0.59375		15.081		19/64		0.296875		7.541		51/64		0.796875		20.241
5/16		0.3125		7.938		21/32		0.65625		16.669		21/64		0.328125		8.334		53/64		0.828125		21.034
7/16		0.4375		11.113		23/32		0.71875		18.256		23/64		0.359375		9.128		55/64		0.859375		21.828
9/16		0.5625		14.288		25/32		0.78125		19.884		25/64		0.390625		9.922		57/64		0.890625		22.622
11/16		0.6875		17.463		27/32		0.84375		21.431		27/64		0.421785		10.716		59/64		0.921875		23.416
13/16		0.8125		20.638		29/32		0.90625		23.019		29/64		0.453125		11.509		61/64		0.953125		24.209
15/16		0.9375		23.813		31/32		0.96875		24.606		31/64		0.484375		12.303		63/64		0.984375		25.003
1/32		0.03125		0.794		1/64		0.01562		0.397		33/64		0.515625		13.097		64/64		1		25.4

Chemical Composition of common Stainless Steel
%
Component	C	Si	Mn	P	S	Cr	Ni	Mo
304	MAX 0.08	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	17.00-19.00	8.00-10.00
304L	MAX 0.03	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	18.00-20.00	8.00-10.00
316	MAX 0.08	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	16.00-18.00	10.00-14.00	2.00-3.00
316L	MAX 0.03	MAX 1.00	MAX 2.00	MAX 0.045	MAX 0.03	16.00-18.00	12.00-15.00	2.00-3.00
